MODEL DETAIL

Technical specifications


Contains: monolithic alu construction, rear 20" wheels with drum brakes and park lock (felly black or wire), swivel front wheel 6" with plastic fork, draft rod behind the wheel with complete accessories and fender, canopy, rear bag, 5points safety belt, mosquito net, windstopper, retaining belt, connecting parts for other moduls


Frame weight:

S - 3,6 kg

Frame material:

aluminium alloys EN AW 6060, 6061, 6082

Curb weight:

depending on installed components and equipment

(example: size "S" + 6” front wheel + hood – 13.4 kg)

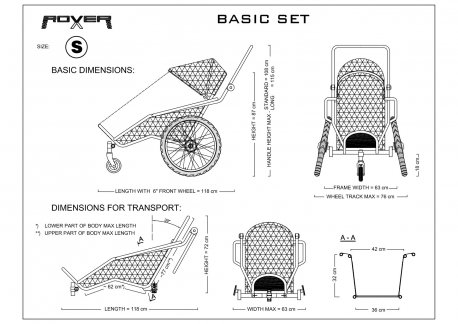

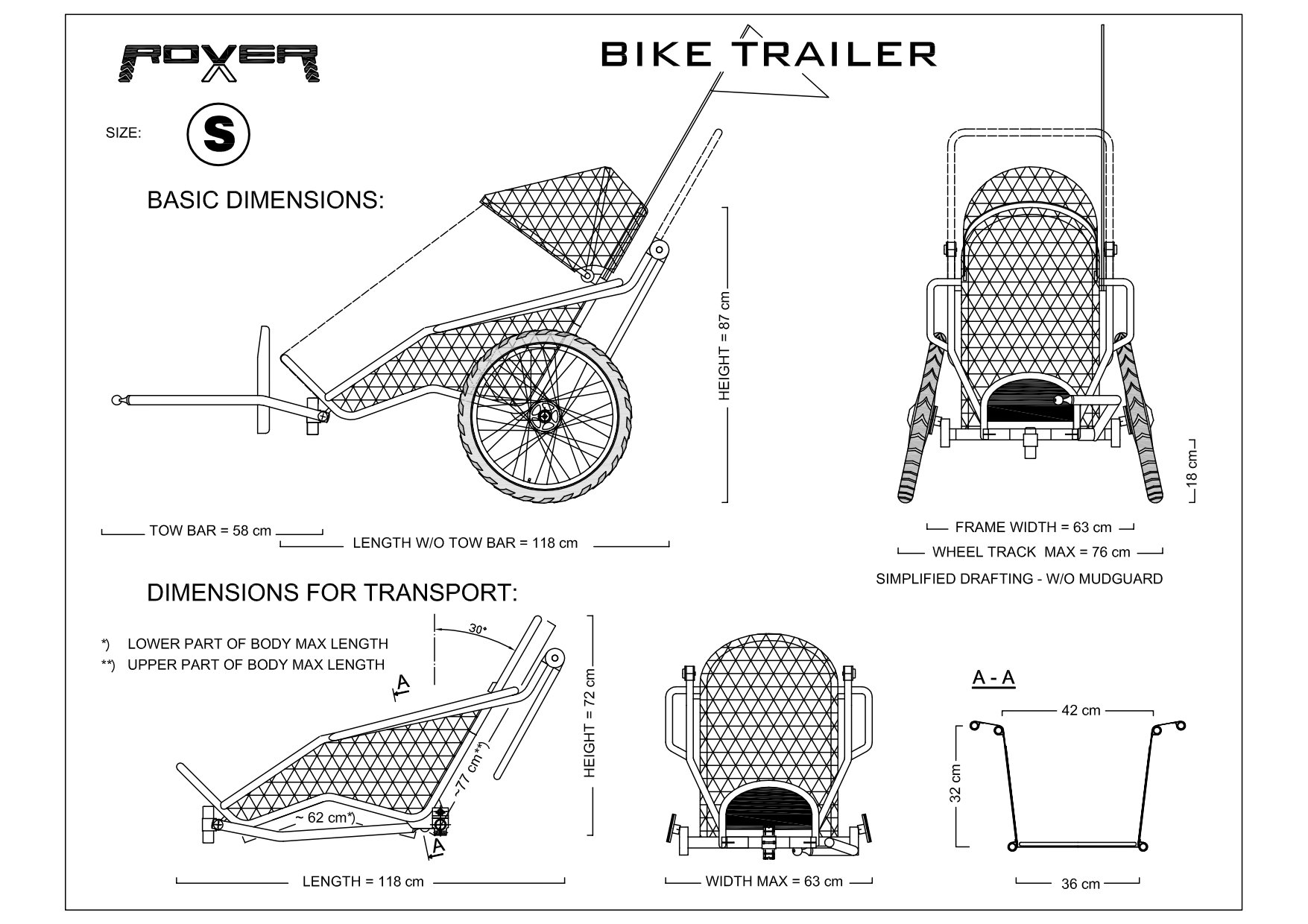

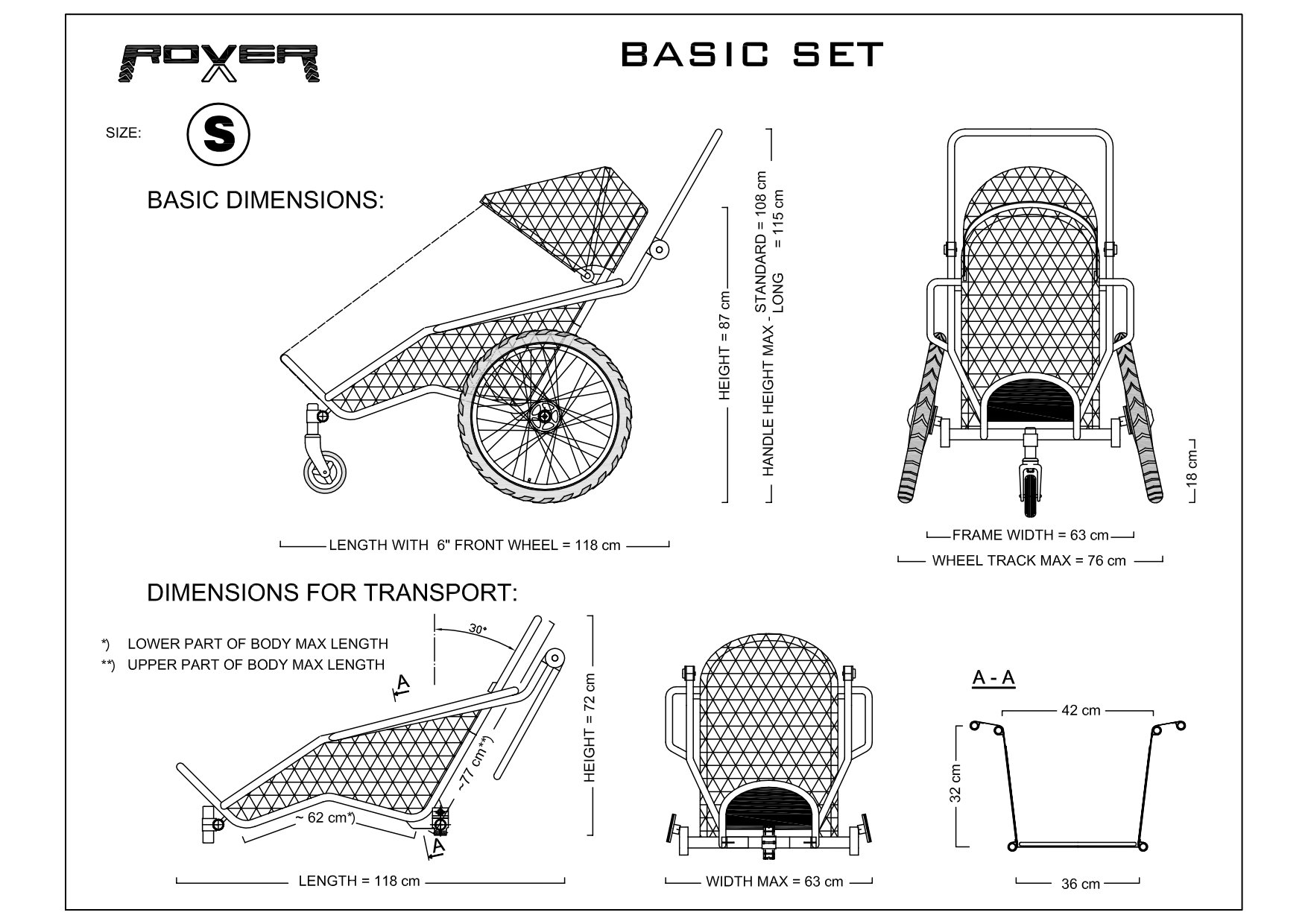

Wheel gauge (track width): ca. 76 cm (guaranteed passage through 80cm door frame)

Wheel-base (rear axle – cross tube of front axle):

S  - 645 mm

Parameters of transported person:
(load weight)

S - up 44 kg/ up to 120 cm (tested for 70 kg)

Rear wheels: 20" with integrated 70mm drum brakes
Wheel material:
  • aluminium centre and rim,plastic
Rear wheel tyre:

20x1,75 (47-406)

Rear wheel tyre inflation pressure:  3,1-4,2 bar, car tyre valve. Max. pressure in one tyre 4.2 bar!

Front wheel 2:

6"

Wheel material:

aluminium centre

Front wheel tyre 2:

full rubber (not inflated)

Front wheel fork 2:

rotating around vertical axis – suitable as a baby buggy on hard surfaces and lower speeds

Fork material 2:
  • glass-filled plastic
Other important properties:
  • The front and rear frame arches protect the transported person’s head and body
     in case the stroller/baby buggy is overturned/overthrown;

  • The rear axle wheel camber by 10° ensures extreme stability against a side overturn of the stroller/baby buggy;

  • Safety belts with five-point safety buckles;

  • To achieve the maximum service life, all fastening materials are made of stainless steel A2

  • An installed and integrated bag for accessories and personal items;

  • Possibility to modify the handbrake from the right to left version.

Optional accessories:
  • Raincoat

  • Bum bag or hand bag

  • front wheel 14" with fork - felly or spoke

  • Winter bag, winter pouch for hands

  • Transporting bag for the whole stroller

  •  Brake lever in right (standard) or left (optional)

  • Collapsible handle in standard or extended (optional) version

  • Other accessories can be changed according to the manufacturer’s current offe
